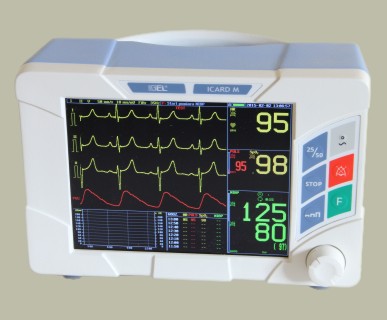

ICARD M Patient Monitors with 8.4" displays
Monitors designed for stationary and transport applications. Small dimensions and
weight enable to use the monitor, practically, in any conditions, at any bed,
ensuring prompt movement to another location.
Simple operation, extensive self-diagnostic functions and automatic calibration make
ICARD M an user-friendly device that guarantees long-term operation at low operating costs.
Offered versions of ICARD M monitors differ in the set of supervised parameters.
Each parameter is displayed in a different color, and the contrast and bright display
makes the image is clear and legible, even from a few meters away.
We offer measurement and supervision of the following parameters:
ECG - Three or five-electrode cable. Simultaneous presentation of 1, 2 or 3 leads,
measurement of heart rate, acoustic and optical QRS signaling.
PULSE OXIMETRY (SpO2) - Measurement with a wide range of sensors,
eg on the finger, ear, hand or foot of the child. Measurement of pulse rate in peripheral
blood vessels and plethysmogram presentation.
NIBP - Measurement activated manually or automatically. Automatic correction of the cuff
inflating pressure, a special measurement algorithm for newborns. A wide range of
cuffs - from newborns to obese adults.
IBP - Single-channel measurement using typical disposable transducers. Automatic setting
of the scale and initial alarm limits depending on the selected label describing the type
of pressure being measured.
CAPNOGRAPHY (CO2) - Side-stream measurement of EtCO2, FiO2
and respiratory rate. Presentation of the breathing wave, apnea supervision, signaling of
the occlusion of the sampling line. Sample flow 50 ml/min.
TEMPERATURE - Single-channel measurement using the YSI400 standard probes.
Due to the transparency of the data presented on the display, we do not recommend choosing an
ICARD M version with more than four measuring modules. With more parameters, we recommend
monitors equipped with displays with a larger diagonal.
All versions can be used to patient monitoring in the full range of ages - from newborns
to adults, provided appropriate selection of equipment (ECG electrodes, sensors and cuffs).
The measured parameters are monitored in the alarm system with acoustic and optical signaling.
The results of measurements are stored in the memory in the form of trends. On their graphs,
the user can insert markers, signifying important moments, e.g. drug administration.
The collected trends can be viewed up to 48 hours back with the maximum recording frequency
of every 15 seconds.
The monitor's functions are controlled by means of a knob that moves the cursor over the options
that can be selected. Pressing the knob accepts the selected option. All messages and menu
of the device are available in the following languages: Polish, English, Czech, Slovak and Russian.
